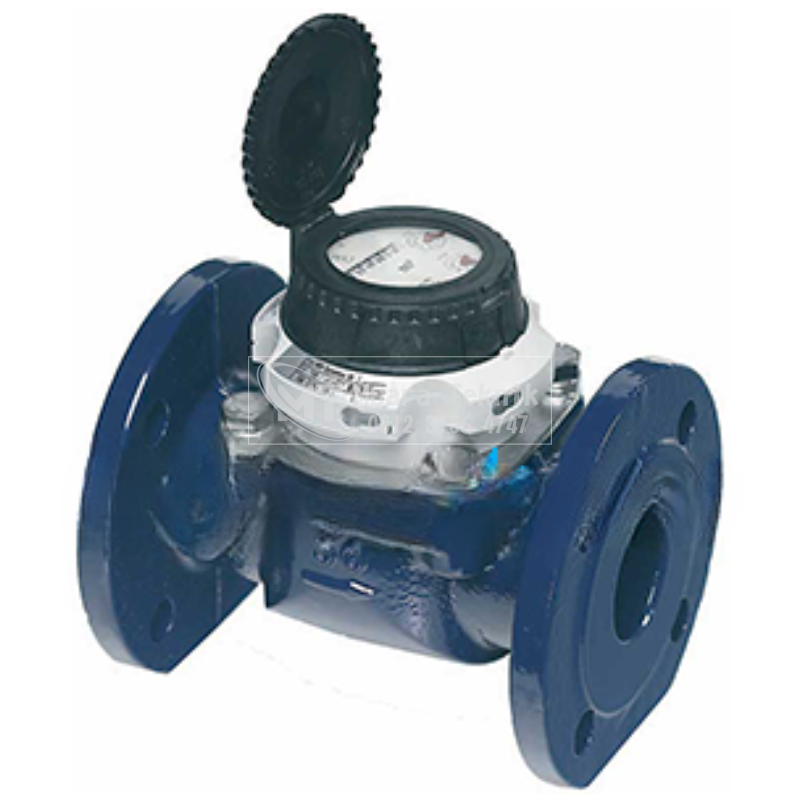

SENSUS COLD WATER METER 2 inch

Performance data WP-Dynamic 50°C

Diameter Nominal DN 50
Size of meter Qn 15
Q.max,(±2%) 90 m³/h
Continuous flow [Qn],(±2%) 50 m³/h
Transitional flow [Qt],(±2%) 0,7 m³/h
Q.min,(±5%) 0,30 m³/h
Starting flow 0,15 m³/h

Performance data according to EEC-specification: 30°C – Class B

Diameter Nominal DN 50
Size of meter Qn 15
Q.max,(±2%) 30 m³/h
Continuous flow [Qn],(±2%) 15 m³/h
Transitional flow [Qt],(±2%) 3,0 m³/h
Q.min,(±5%) 0,45 m³/hWorking temperature: 50°C
Working pressure PN 16
Metrological class B
Overall length L: 200 mm
Pulse values: 1 / 0.1 m³
Flange drilling acc. to DIN 2501, PN 16
Weight 7,7Kg
