Description

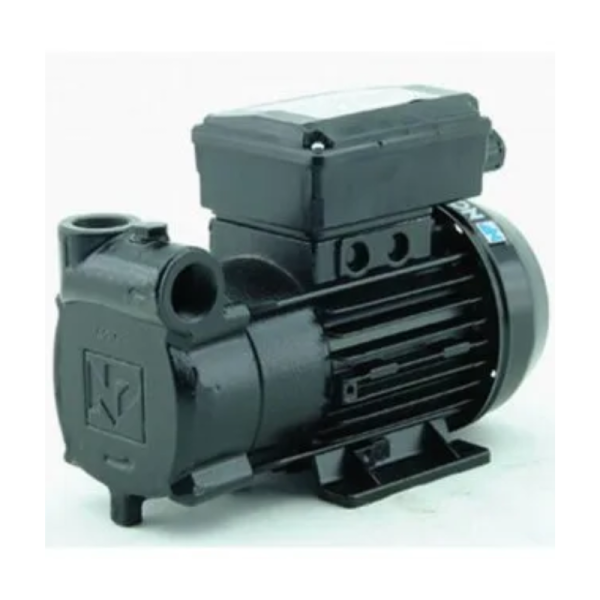

SPECIAL SELF-PRIMING LIQUID RING PUMPS FOR DIESEL TRANSFER
Design Features:
– Cast iron pump casing
– Cast iron motor bracket
– Brass finned impeller
– Stainless steel shaft
– Mechanical graphite seal with ceramic counterface
-Intermediate fleng drainage pipe
Applications
– Manufacture of delivery assemblies
Motor
– Enclosed, externally ventilated
– Level of protection IP55
– Enclosed, externally ventilated
– Level of protection IP55
– Class F insulation
– Single phase power supply with capacitor permanently activated and thermal protection built into the motor winding.
– Three phase power supply with external protection provided by the user
-Speed of rotation 2850 rpm
– Suitable for continuous use Usage Limitations
– Type of liquid: diesel
– Maximum liquid temperature 50C
– Maximum recommended suction height 5m with foot valve
– Maximum operating pressure 6 bar
