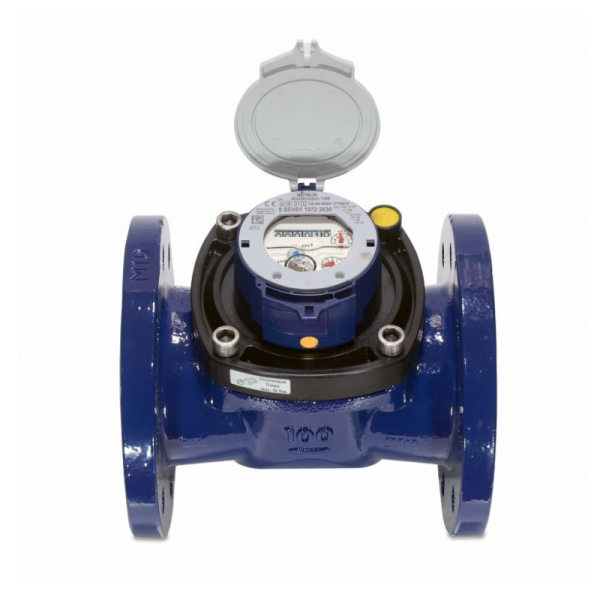

SENSUS COLD WATER METER DN100

Performance data WP-Dynamic 50 ºC

Nominal Diameter(DN) : 100mm (4″)
Max. peak flow (Qmax) : 300 m3/h
Continuous flow (Qn) : 230 m3/h
Transitional flow (Qt) : 1.8 m3/h
Min. flow (Qmin) : 0.80 m3/h
Starting flow : 0.25 m3/h

Performance data according to EEC-specification 30 ºC class B

Nominal Diameter(DN) : 100mm (4″)
Max. peak flow (Qmax) : 120 m3/h
Continuous flow (Qn) : 60 m3/h
Transitional flow (Qt) : 12.0 m3/h
Min. flow (Qmin) : 1.80 m3/h
