Additional information
| Weight | 30 kg |
|---|---|
| Dimensions | 40 x 50 x 30 cm |

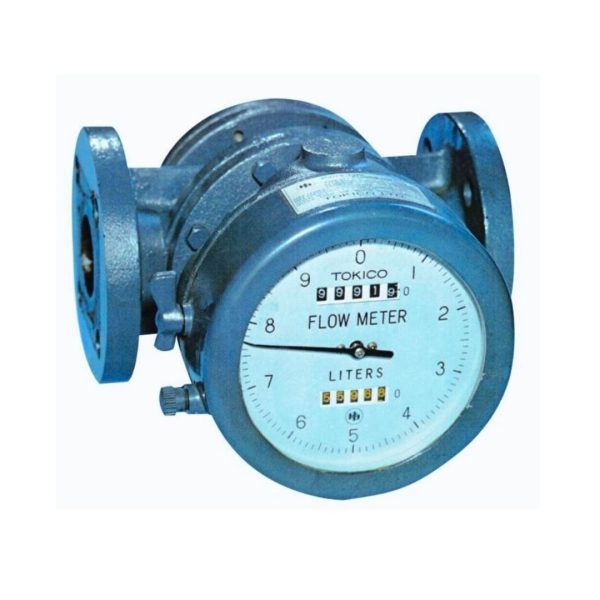

Flow Meter Tokico 2″
Rp0
Size Diameter : 2 ”
Accuracy : ± 0.5%
Max Working Pressure : 10 kgf/ cm²
Hydraulic Test pressure : 20 kgf/ cm²
Max. Working Temperature ,Kerosone,diesel/ligh oil A heavy Oil : 50°C
A,B,C heavy Oil : 100°C
Flange Rating : JIS 10 kgf/ cm² FF
kerosene, Light Oil ( 1, 2~ 3cP) : 1,500~ 13,000 l/hour
Heavy Oil ( 10cP~ ) : 250~ 15, 000 l/hour
B, C Heavy Oil ( 50cP~ 300cP) : 100~ 15, 000 l/hour
Type : Direct Reading ,Re-Set Counter
Related Products
Tokico 2″ Adjuster
| Applicable Fluid | Gasoline, Kerosene, Diesel Oil, |
| Light Oil & Heavy Oil | |
| Accuracy | ±0.2% |
| Flow Range | 1,500 – 9,000 L/H |
| 1,2 ̴ 3cP | |
| Diesel, Light Oil | |
| Flow Range | 250 ̴ 13,000 L/H |
| 10cP | |
| Heavy Oil | |
| Max. Working | Standard : 100°C |
| Temperature | Optional : 150°C |
| Max. Working | Max. 1 Mpa (10 kgf/cm²) |
| Pressure | |
| Fluid Viscosity | Max. 150,000mPa s (150,000cp) |
| Connection Size | 50 mm |
| Flange Rating | F 2 5 0 : JIS 10K FF |
| FCD400 : JIS 10K FF | |
| SC PH 2 : (JIS 10K, | |
| 20K RF ANSI JP11500,300 RF) | |
| Material Main Body | FC 2 5 0 : (capacity 35-52 type) |
| FCD400 : (capacity 35-41 type) | |
| Sc PH 2 : (capacity 35-52 type) | |
| however, the connection size 80mm of | |
| 45 type is excluded | |
| Material Rotor | FC200, AC7A or ADC |
| Material Rotor Shaft | SUS416 hard chrone plating |
| Material Bearing | C5191, FC, ball bearing |
| Material Driving | SUS420J2 |
| Gear | |
| Piping Installation | Horizontal or Vertical Piping |
| Paint Color | Mancell 1.4PB3.1/1.2 |
Tokico 3″
| Specifications | |||
|---|---|---|---|
| Accuracy | +/- 0.5% | ||
| Max. Working Pressure | 10 Kg/Cm2 | ||
| Hydraulic Test Pressure | 20 Kg/Cm2 | ||
| Max. Temperature | 50 °C For Kerosene/ Light Oil, 100 °C For Heavy Oil | ||
| Flange Rating | Jis 10 Kg/Cm2 Ff | ||
| Model /Type : | Frp 0845baa-04×2-X | Counter : 7 Digits | 3 Inch /80mm |
| Flow Range (L/H) Intermitent | Kerosene / Light Oil = 3.500-35.000 L/H | A Heavy Oil = 600 – 40.000 L/H | B Heavy Oil = 300-40.000 L/H |
| Flow Range (L/H) Continous | Kerosene / Light Oil = 3.500-25.000 L/H | A Heavy Oil = 600 – 35.000 L/H | B Heavy Oil = 300-35.000 L/H |
| Flow Range (L/H) * – Maximum – | Kerosene / Light Oil = 40.000 L/H | A Heavy Oil = 45.000 L/H | B Heavy Oil = 45.000 L/H |
